Square Type
<Plastic Housing> |
|
|
BS-02N Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Vertical
Model：BS-02N
Output Method：NPN
Sensing Distance：2.0mm
Mounting Method：Flushed
Sensing Direction：Vertical
Operating Voltage：10~30
VDC
Response Frequency：2KHZ |
|
|
Square Type
<Plastic Housing> |
|
|
BS-02P Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Vertical
Model：BS-02P
Output Method：PNP
Sensing Distance：2.0mm
Mounting Method：Flushed
Sensing Direction：Vertical
Operating Voltage：10~30
VDC
Response Frequency：2KHZ |
|
|
Square Type
<Plastic Housing> |
|
|
BS-04N Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Vertical
Model：BS-04N
Output Method：NPN
Sensing Distance：4.0mm
Mounting Method：Non-Flushed
Sensing Direction：Vertical
Operating Voltage：10~30
VDC
Response Frequency：2KHZ |
|
|
Square Type
<Plastic Housing> |
|
|
BS-04P Inductive Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Vertical
Model：BS-04P
Output Method：PNP
Sensing Distance：4.0mm
Mounting Method：Non-Flushed
Sensing Direction：Vertical
Operating Voltage：10~30
VDC
Response Frequency：2KHZ |
|
|
Square Type
<Plastic Housing> |
|
|
LS-04N Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：LS-04N
Output Method：NPN
Sensing Distance：4.0mm
Mounting Method：Non-Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：2KHZ |
|
|
Square Type
<Plastic Housing> |
|
|
LS-04N-V Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Vertical
Model：LS-04N-V
Output Method：NPN
Sensing Distance：4.0mm
Mounting Method：Non-Flushed
Sensing Direction：Vertical
Operating Voltage：10~30
VDC
Response Frequency：2KHZ |
|
|
Square Type
<Plastic Housing> |
|
|
LS-04P Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-HorizontalHELP_FILE： NO FILE
Model：LS-04P
Output Method：PNP
Sensing Distance：4.0mm
Mounting Method：Non-Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：2KHZ |
|
|
Square Type
<Plastic Housing> |
|
|
LS-04P-V Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Vertical
Model：LS-04P-V
Output Method：PNP
Sensing Distance：4.0mm
Mounting Method：Non-Flushed
Sensing Direction：Vertical
Operating Voltage：10~30
VDC
Response Frequency：2KHZ |
|
|
Square Type
<Plastic Housing> |
|
|
PL-05N Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Vertical
Model：PL-05N
Output Method：NPN
Sensing Distance：5.0mm
Mounting Method：Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：800HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PL-05P Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Vertical
Model：PL-05P
Output Method：PNP
Sensing Distance：5.0mm
Mounting Method：Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：800HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PL-08N Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PL-08N
Output Method：NPN
Sensing Distance：8.0mm
Mounting Method：Non-Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：800HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PL-08P Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PL-08P
Output Method：PNP
Sensing Distance：8.0mm
Mounting Method：Non-Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：800HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PP-05N Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Vertical
Model：PP-05N
Output Method：NPN
Sensing Distance：5.0mm
Mounting Method：Flushed
Sensing Direction：Vertical
Operating Voltage：10~30
VDC
Response Frequency：800HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PP-05P Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Vertical
Model：PP-05P
Output Method：PNP
Sensing Distance：5.0mm
Mounting Method：Flushed
Sensing Direction：Vertical
Operating Voltage：10~30
VDC
Response Frequency：800HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PP-08N Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Vertical
Model：PP-08N
Output Method：NPN
Sensing Distance：8.0mm
Mounting Method：Non-Flushed
Sensing Direction：Vertical
Operating Voltage：10~30
VDC
Response Frequency：800HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PP-08P Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Vertical
Model：PP-08P
Output Method：PNP
Sensing Distance：8.0mm
Mounting Method：Non-Flushed
Sensing Direction：Vertical
Operating Voltage：10~30
VDC
Response Frequency：800HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PS-05N Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PS-05N
Output Method：NPN
Sensing Distance：5.0mm
Mounting Method：Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：800HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PS-05P Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PS-05P
Output Method：PNP
Sensing Distance：5.0mm
Mounting Method：Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：800HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PS-05S Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PS-05S
Output Method：SCR
Sensing Distance：5.0mm
Mounting Method：Flushed
Sensing Direction：Horizontal
Operating Voltage：90~250
VAC
Response Frequency：20HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PS-08N Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PS-08N
Output Method：NPN
Sensing Distance：8.0mm
Mounting Method：Non-Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：800HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PS-08P Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PS-08P
Output Method：PNP
Sensing Distance：8.0mm
Mounting Method：Non-Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：800HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PS-08S Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PS-08S
Output Method：SCR
Sensing Distance：8.0mm
Mounting Method：Non-Flushed
Sensing Direction：Horizontal
Operating Voltage：90~250
VAC
Response Frequency：20HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PS-10N Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PS-10N
Output Method：NPN
Sensing Distance：10.0mm
Mounting Method：Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：500HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PS-10P Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PS-10P
Output Method：PNP
Sensing Distance：10.0mm
Mounting Method：Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：500HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PS-10S Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PS-10S
Output Method：SCR
Sensing Distance：10.0mm
Mounting Method：Flushed
Sensing Direction：Horizontal
Operating Voltage：90~250
VAC
Response Frequency：20HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PS-15N Inductive Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PS-15N
Output Method：NPN
Sensing Distance：15.0mm
Mounting Method：Non-Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：500HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PS-15P Inductive Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PS-15P
Output Method：PNP
Sensing Distance：15.0mm
Mounting Method：Non-Flushed
Sensing Direction：Horizontal
Operating Voltage：10~30
VDC
Response Frequency：500HZ |
|
|
Square Type
<Plastic Housing> |
|
|
PS-15S Inductive Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Horizontal
Model：PS-15S
Output Method：SCR
Sensing Distance：15.0mm
Mounting Method：Non-Flushed
Sensing Direction：Horizontal
Operating Voltage：90~250
VAC
Response Frequency：20HZ |
|
|
Square Type
<Plastic Housing> |
|
|
SP-05N Proximity Sensor
HELP_FILE： NO FILE
Discription：Sensing Direction-Vertical
Model：SP-05N
Output Method：NPN
Sensing Distance：5.0mm
Mounting Method：Non-Flushed
Sensing Direction：Vertical
Operating Voltage：10~30
VDC
Response Frequency：800HZ |
|
|
Square Type
<Plastic Housing> |
|
|

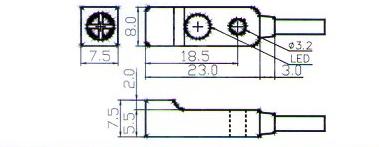

LS-02N
Proximity Sensor
Output Status:NO
Output Method:NPN
Sensing Distance:2.0mm
Mounting Method:Non-flushed
Sensing Direction:Horizontal
Operating Voltage:10~30VDC
Response Frequency:2KHz |
|
|
Square Type
<Plastic Housing> |
|
|
LS-02NB Proximity Sensor
Output Status:NC
Output Method:NPN
Sensing Distance:2.0mm
Mounting Method:Non-flushed
Sensing Direction:Horizontal
Operating Voltage:10~30VDC
Response Frequency:2KHz |
|
|
Square Type
<Plastic Housing> |
|
|
LS-02P Proximity Sensor
Output Status:NO
Output Method:PNP
Sensing Distance:2.0mm
Mounting Method:Non-flushed
Sensing Direction:Horizontal
Operating Voltage:10~30VDC
Response Frequency:2KHz |
|
|
Square Type
<Plastic Housing> |
|
|
LS-02PB Proximity Sensor
Output Status:NC
Output Method:PNP
Sensing Distance:2.0mm
Mounting Method:Non-flushed
Sensing Direction:Horizontal
Operating Voltage:10~30VDC
Response Frequency:2KHz |
|
|
Square Type
<Plastic Housing> |
|
|

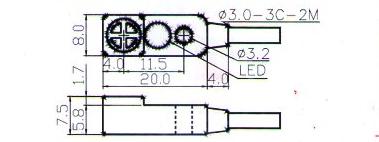

SP-02N Proximity Sensor
Output Status:NO
Output Method:NPN
Sensing Distance:2.0mm
Mounting Method:Non-flushed
Sensing Direction:Vertical
Operating Voltage:10~30VDC
Response Frequency:2KHz |
|
|
Square Type
<Plastic Housing> |
|
|
SP-02NB Proximity Sensor
Output Status:NC
Output Method:NPN
Sensing Distance:2.0mm
Mounting Method:Non-flushed
Sensing Direction:Vertical
Operating Voltage:10~30VDC
Response Frequency:2KHz |
|
|
Square Type
<Plastic Housing> |
|
|
SP-02P Proximity Sensor
Output Status:NO
Output Method:PNP
Sensing Distance:2.0mm
Mounting Method:Non-flushed
Sensing Direction:Vertical
Operating Voltage:10~30VDC
Response Frequency:2KHz |
|
|
Square Type
<Plastic Housing> |
|
|
SP-02PB Proximity Sensor
Output Status:NC
Output Method:PNP
Sensing Distance:2.0mm
Mounting Method:Non-flushed
Sensing Direction:Vertical
Operating Voltage:10~30VDC
Response Frequency:2KHz |
|
|
Square Type
<Plastic Housing> |
|
|

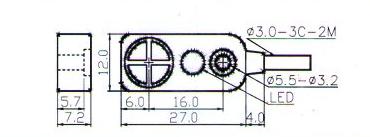

SP-04N Proximity Sensor
Output Status:NO
Output Method:NPN
Sensing Distance:4.0mm
Mounting Method:Non-flushed
Sensing Direction:Vertical
Operating Voltage:10~30VDC
Response Frequency:2KHz |
|
|
Square Type
<Plastic Housing> |
|
|
SP-04NB Proximity Sensor
Output Status:NC
Output Method:NPN
Sensing Distance:4.0mm
Mounting Method:Non-flushed
Sensing Direction:Vertical
Operating Voltage:10~30VDC
Response Frequency:2KHz |
|
|
Square Type
<Plastic Housing> |
|
|
SP-04P Proximity Sensor
Output Status:NO
Output Method:PNP
Sensing Distance:4.0mm
Mounting Method:Non-flushed
Sensing Direction:Vertical
Operating Voltage:10~30VDC
Response Frequency:2KHz |
|
|
Square Type
<Plastic Housing> |
|
|
SP-04PB Proximity Sensor
Output Status:NC
Output Method:PNP
Sensing Distance:4.0mm
Mounting Method:Non-flushed
Sensing Direction:Vertical
Operating Voltage:10~30VDC
Response Frequency:2KHz |
|
|
Square Type
<Plastic Housing> |
|
|

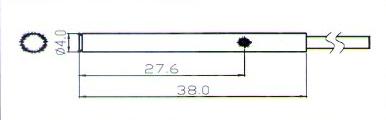

PT04-01N Proximity Sensor
Output Status:NO
Output Method:NPN
Sensing Distance:0.8mm
Mounting Method:Flushed
Response Frequency:2.5KHz
Operating Voltage:10~30VDC
Housing Material:sus304 |
|
|
Square Type
<Plastic Housing> |
|
|
PT04-01P Proximity Sensor
Output Status:NO
Output Method:PNP
Sensing Distance:0.8mm
Mounting Method:Flushed
Response Frequency:2.5KHz
Operating Voltage:10~30VDC
Housing Material:sus304 |
|
|
Square Type
<Plastic Housing> |
|
|

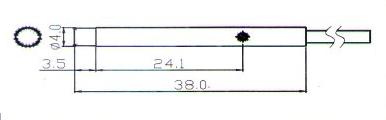

PT04-02N Proximity Sensor
Output Status:NO
Output Method:NPN
Sensing Distance:1.5mm
Mounting Method:Flushed
Response Frequency:2.5KHz
Operating Voltage:10~30VDC
Housing Material:sus304 |
|
|
Square Type
<Plastic Housing> |
|
|
PT04-02P Proximity Sensor
Output Status:NO
Output Method:PNP
Sensing Distance:1.5mm
Mounting Method:Flushed
Response Frequency:2.5KHz
Operating Voltage:10~30VDC
Housing Material:sus304 |
|
|
Square Type
<Plastic Housing> |
|
|

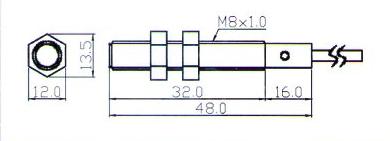

TW08-01C
Proximity Sensor
Output Status:NO
Sensing Distance:1.0mm
Mounting Method:Flushed
Response Frequency:2.0KHz
Operating Voltage:10~30VDC
Connection Method:Lead Wire
Housing Material:Cu plated Ni |
|
|
Square Type
<Plastic Housing> |
|
|
TW08-01CB Proximity Sensor
Output Status:NC
Sensing Distance:1.0mm
Mounting Method:Flushed
Response Frequency:2.0KHz
Operating Voltage:10~30VDC
Connection Method:Lead Wire
Housing Material:Cu plated Ni |
|
|
Square Type
<Plastic Housing> |
|
|

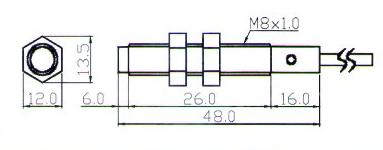

TW08-02C
Proximity Sensor
Output Status:NO
Sensing Distance:2.0mm
Mounting Method:Non-flushed
Response Frequency:2.0KHz
Operating Voltage:10~30VDC
Connection Method:Lead Wire
Housing Material:Cu plated Ni |
|
|
Square Type
<Plastic Housing> |
|
|
TW08-02CB Proximity Sensor
Output Status:NC
Sensing Distance:2.0mm
Mounting Method:Non-flushed
Response Frequency:2.0KHz
Operating Voltage:10~30VDC
Connection Method:Lead Wire
Housing Material:Cu plated Ni |
|
|
Square Type
<Plastic Housing> |
|
|

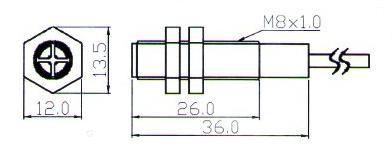

CP08-06N Proximity Sensor
Output Status:NO
Output Method:NPN
Sensing Distance:6.0mm
Operating Voltage:10~30VDC
Sensitivity Adjuster:Non
Housing Material:PP |
|
|
Square Type
<Plastic Housing> |
|
|
CP08-06NB Proximity Sensor
Output Status:NC
Output Method:NPN
Sensing Distance:6.0mm
Operating Voltage:10~30VDC
Sensitivity Adjuster:Non
Housing Material:PP |
|
|
Square Type
<Plastic Housing> |
|
|
CP08-06P Proximity Sensor
Output Status:NO
Output Method:PNP
Sensing Distance:6.0mm
Operating Voltage:10~30VDC
Sensitivity Adjuster:Non
Housing Material:PP |
|
|
Square Type
<Plastic Housing> |
|
|
CP08-06PB Proximity Sensor
Output Status:NC
Output Method:PNP
Sensing Distance:6.0mm
Operating Voltage:10~30VDC
Sensitivity Adjuster:Non
Housing Material:PP |
|
|
Square Type
<Plastic Housing> |
|
|

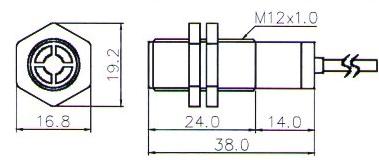

CP12-10N Proximity Sensor
Output Status:NO
Output Method:NPN
Sensing Distance:10.0mm
Operating Voltage:10~30VDC
Sensitivity Adjuster:Non
Housing Material:PBT |
|
|
Square Type
<Plastic Housing> |
|
|
CP12-10NB Proximity Sensor
Output Status:NC
Output Method:NPN
Sensing Distance:10.0mm
Operating Voltage:10~30VDC
Sensitivity Adjuster:Non
Housing Material:PBT |
|
|
Square Type
<Plastic Housing> |
|
|
CP12-10P Proximity Sensor
Output Status:NO
Output Method:PNP
Sensing Distance:10.0mm
Operating Voltage:10~30VDC
Sensitivity Adjuster:Non
Housing Material:PBT |
|
|
Square Type
<Plastic Housing> |
|
|
CP12-10PB Proximity Sensor
Output Status:NC
Output Method:PNP
Sensing Distance:10.0mm
Operating Voltage:10~30VDC
Sensitivity Adjuster:Non
Housing Material:PBT |
|
|
Square Type
<Plastic Housing> |
|
|

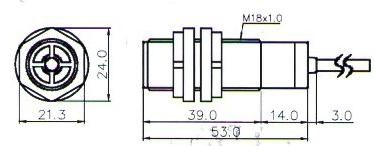

CP18-30N Proximity Sensor
Output Status:NO/NC
Output Method:NPN
Sensing Distance:20.0mm
Operating Voltage:10~30VDC
Sensitivity Adjuster:14 turns trimmer
Housing Material:PP |
|
|
Square Type
<Plastic Housing> |
|
|
CP18-30P Proximity Sensor
Output Status:NO/NC
Output Method:PNP
Sensing Distance:20.0mm
Operating Voltage:10~30VDC
Sensitivity Adjuster:14 turns trimmer
Housing Material:PP |
|
|
Square Type
<Plastic Housing> |
|
|

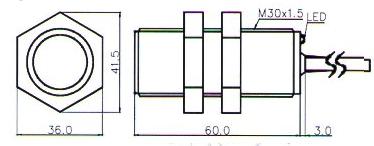

CP30-50C
Proximity Sensor
Output Status:NO
Output Method:NPN&PNP
Sensing Distance:30.0mm
Operating Voltage:10~30VDC
Sensitivity Adjuster:14 turns trimmer
Housing Material:PBT |
|
|
Square Type
<Plastic Housing> |
|
|
CP30-50CB Proximity Sensor
Output Status:NC
Output Method:NPN&PNP
Sensing Distance:30.0mm
Operating Voltage:10~30VDC
Sensitivity Adjuster:14 turns trimmer
Housing Material:PBT |
|
|
Square Type
<Plastic Housing> |
|
|
CP30-50S Proximity Sensor
Output Status:NO
Output Method:SCR
Sensing Distance:30.0mm
Operating Voltage:90~250VDC
Sensitivity Adjuster:14 turns trimmer
Housing Material:PBT |
|
|
Square Type
<Plastic Housing> |
|
|
CP30-50SB Proximity Sensor
Output Status:NC
Output Method:SCR
Sensing Distance:30.0mm
Operating Voltage:90~250VDC
Sensitivity Adjuster:14 turns trimmer
Housing Material:PBT |
|
